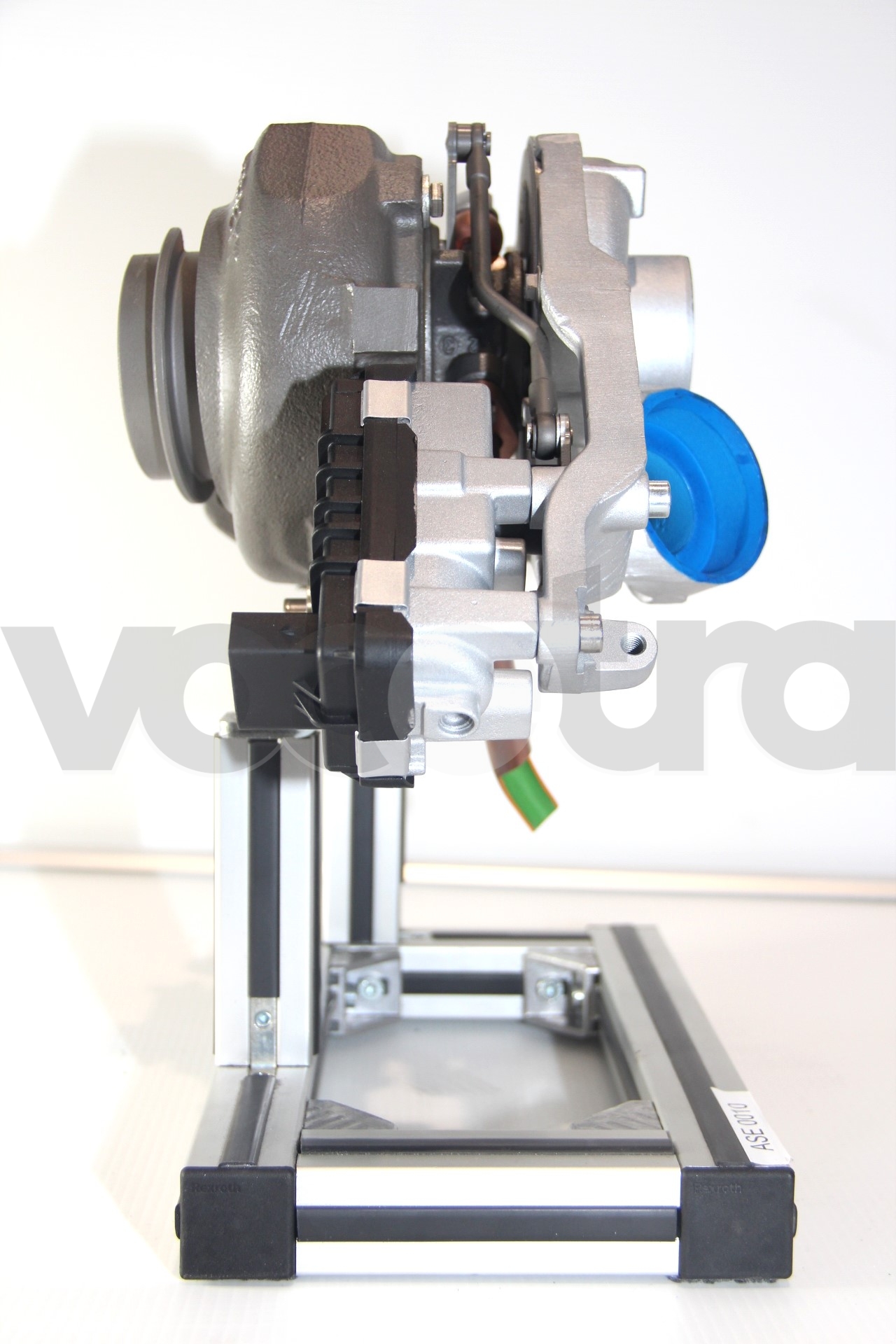

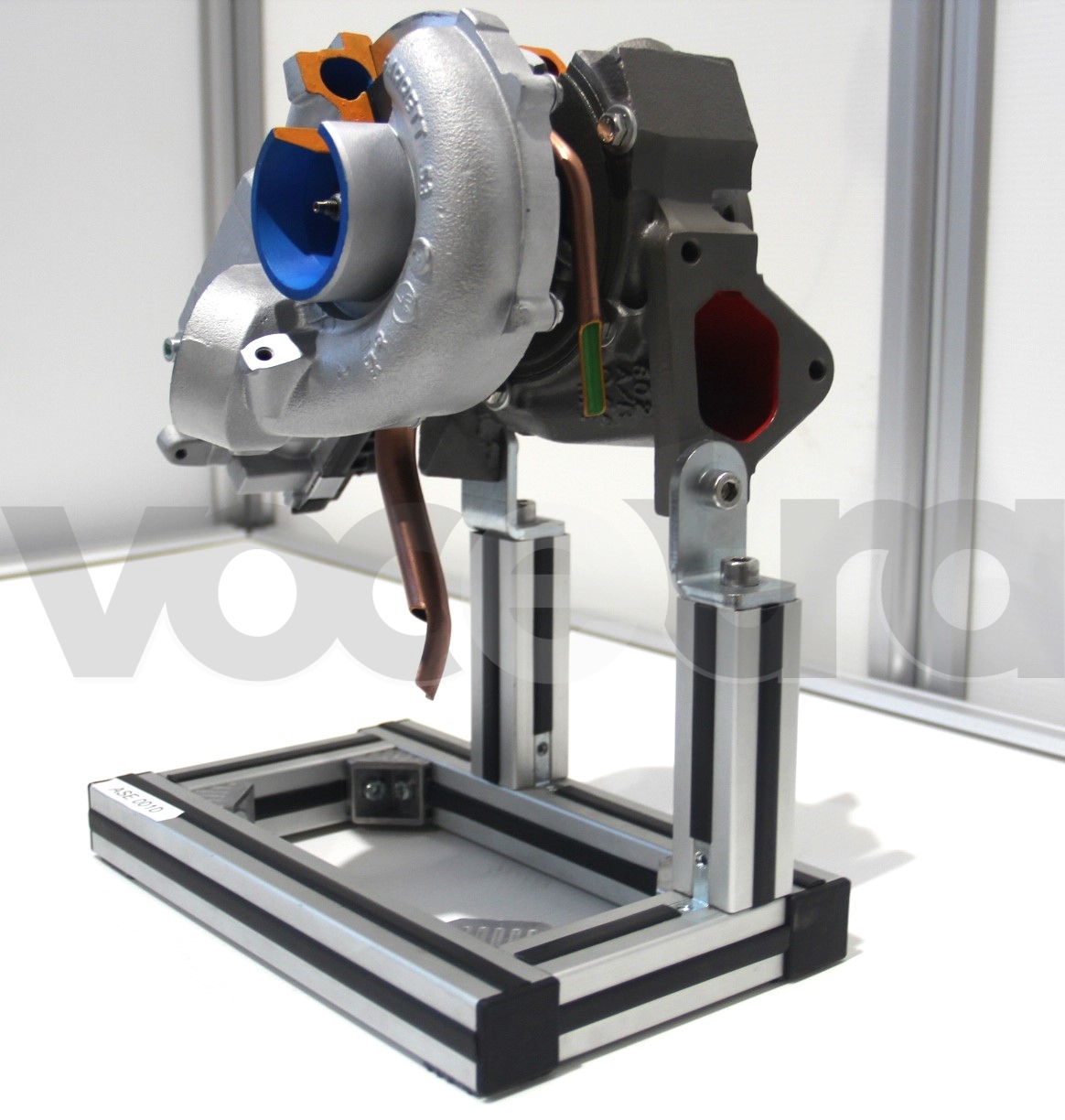

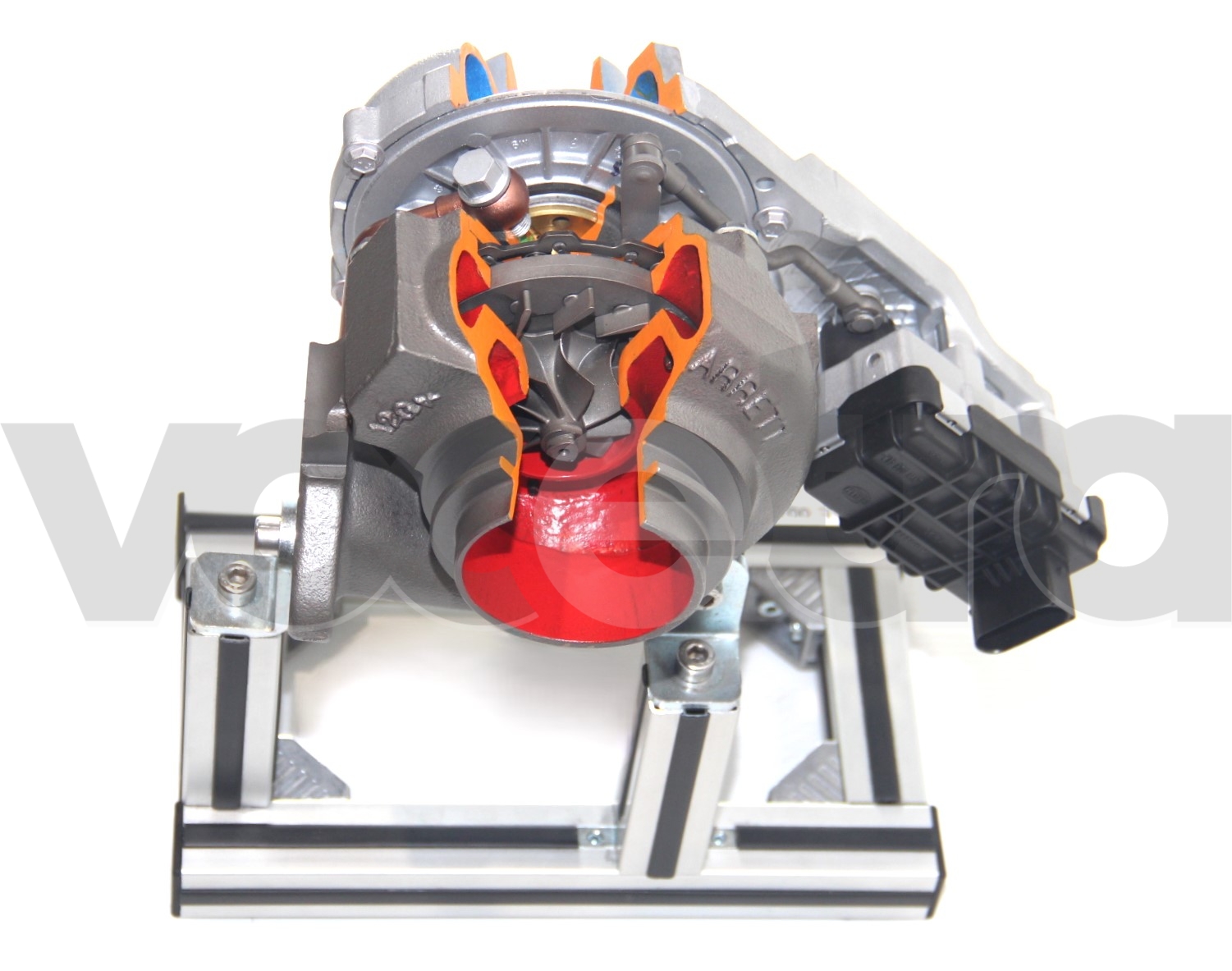

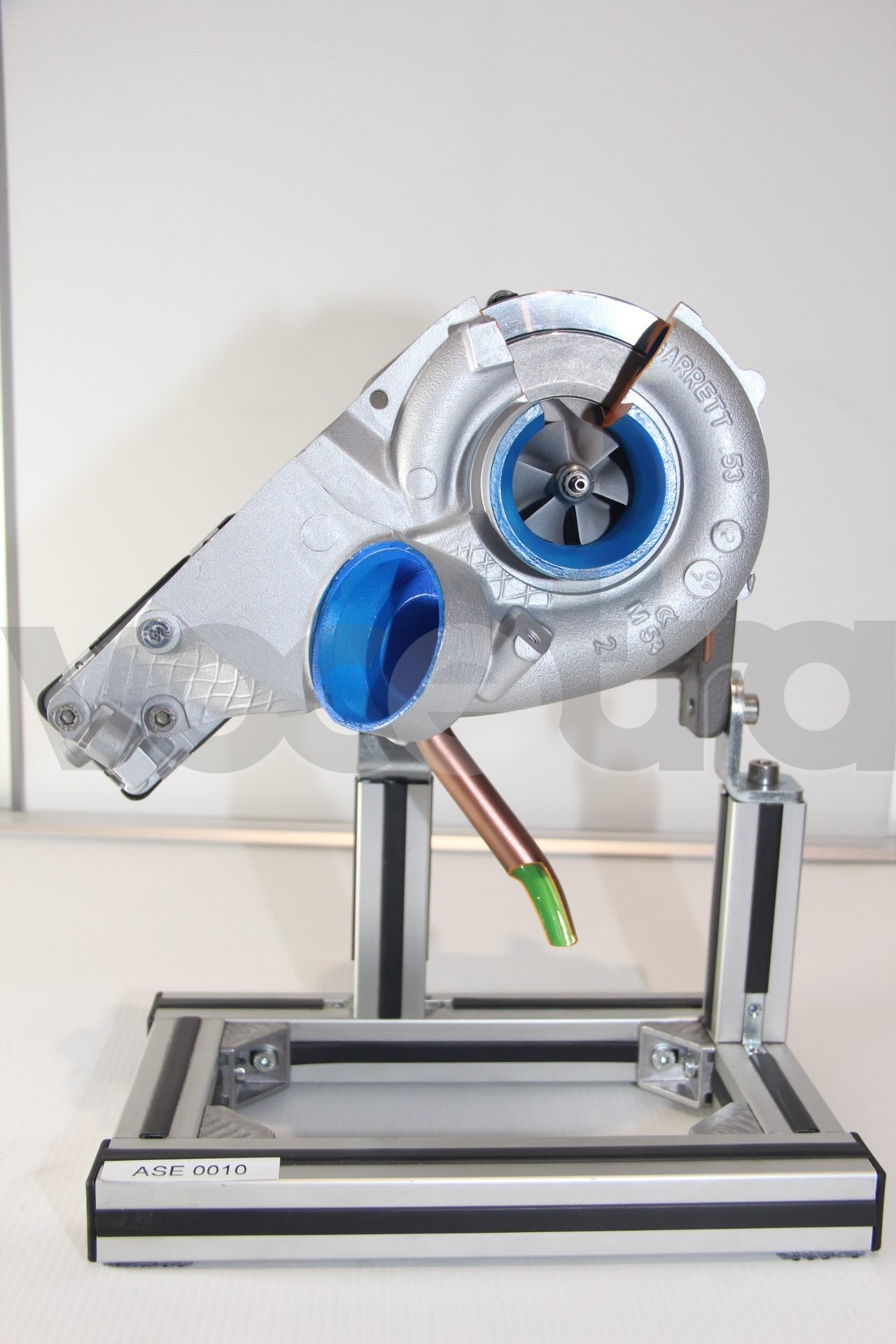

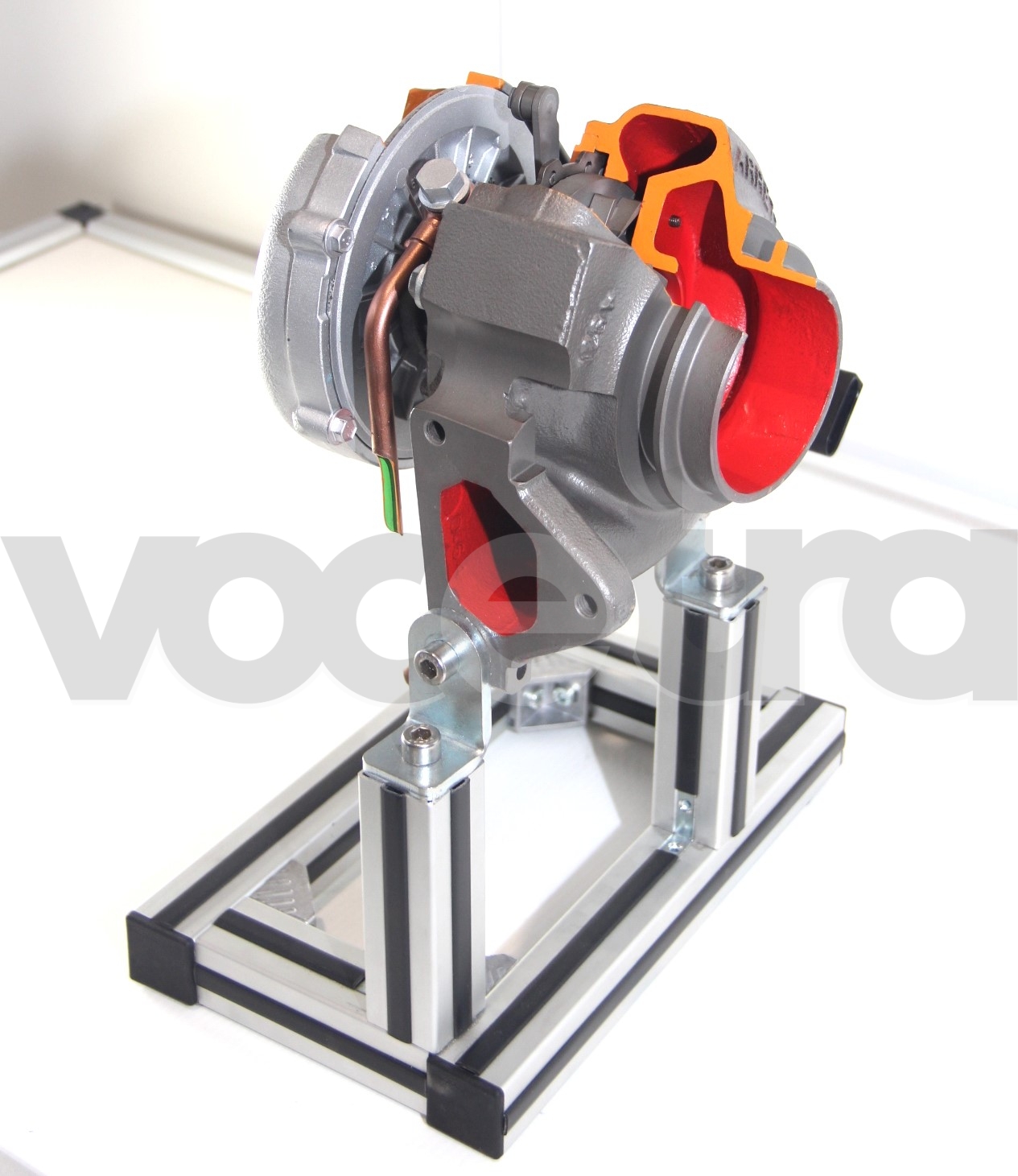

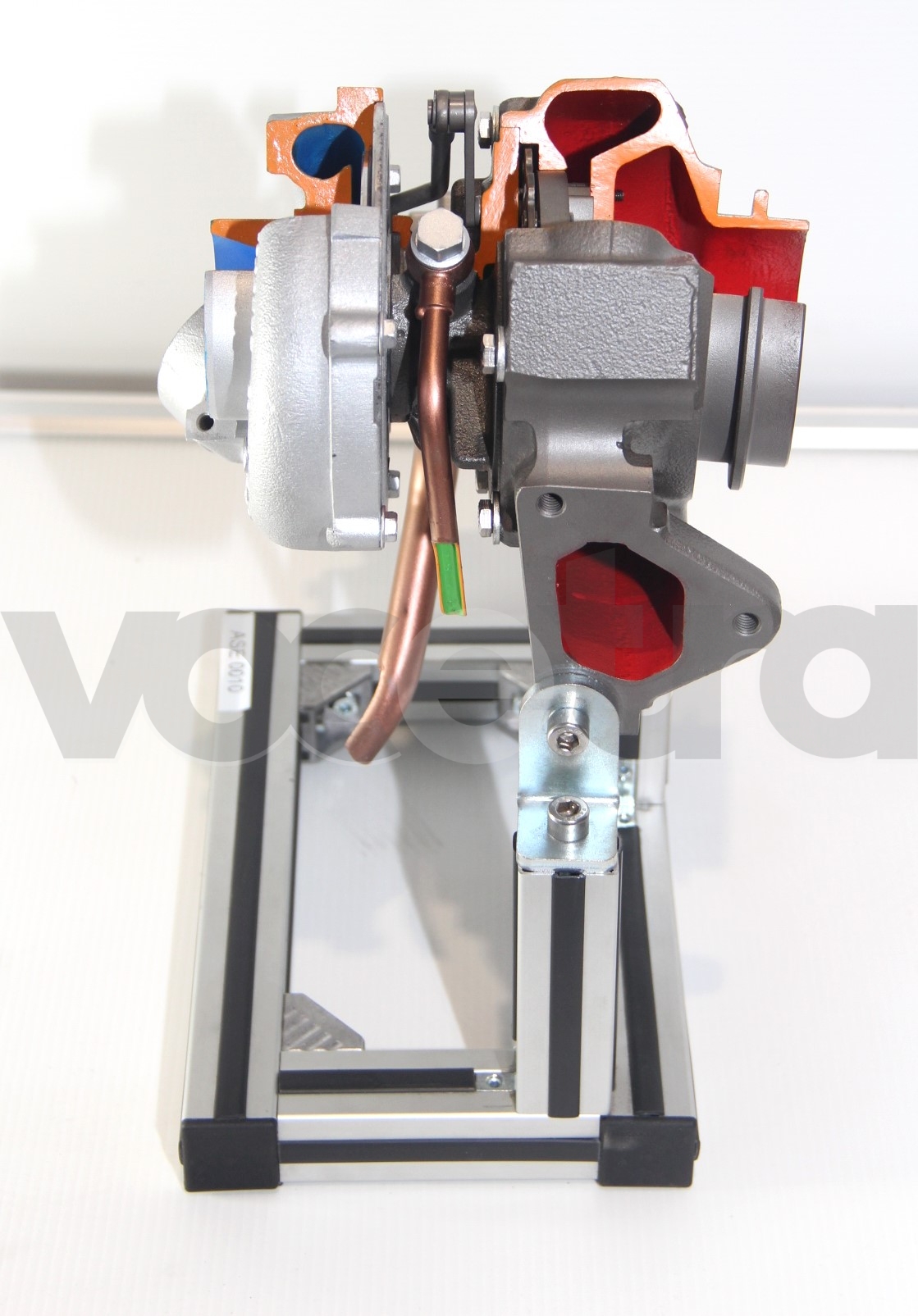

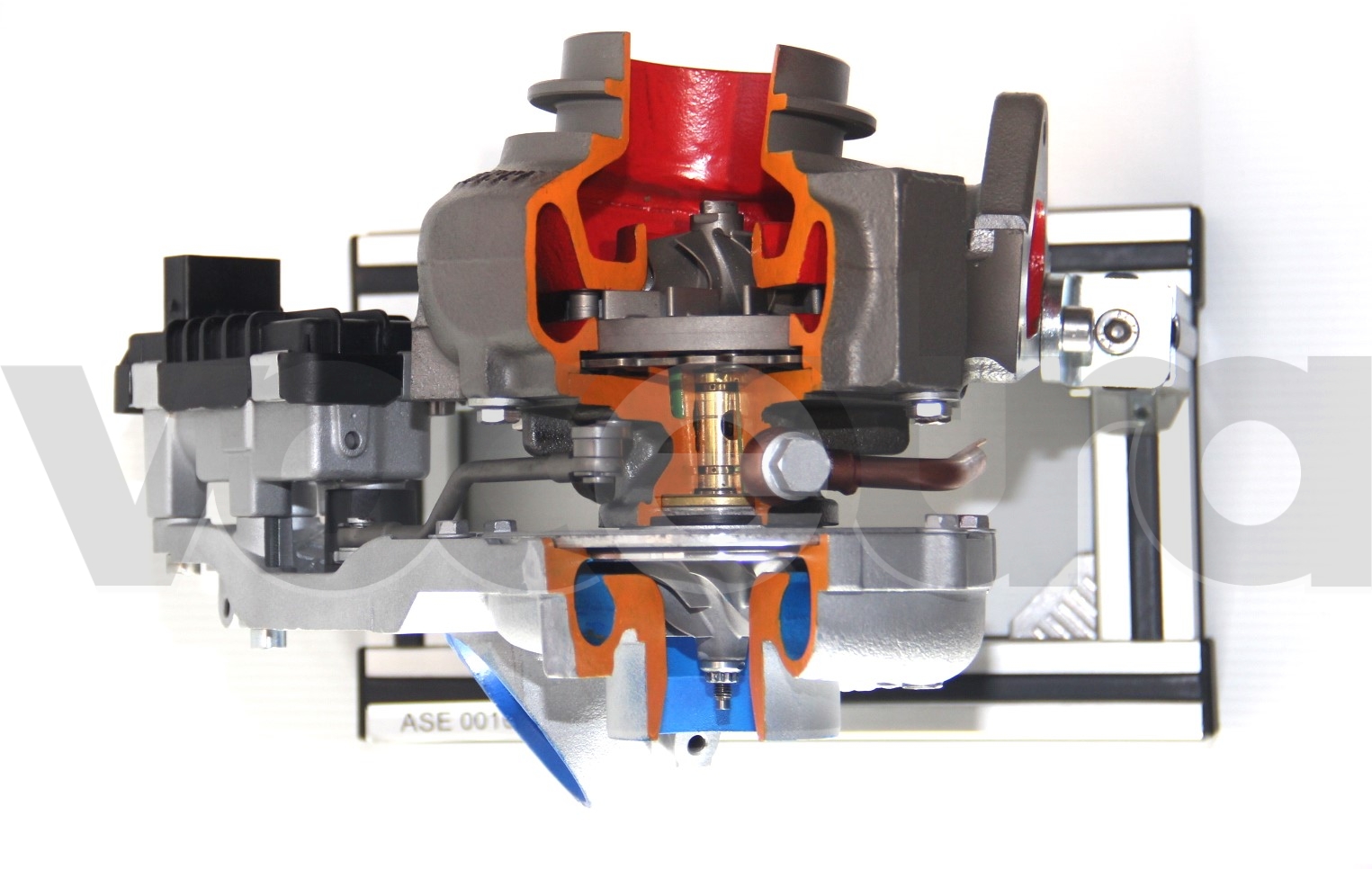

Cutaway model of a diesel car turbine

This is a highly detailed cutaway model featuring a prominently displayed, movable blade assembly and a clear demonstration of the variable geometry system in action. Created specifically for training, the model is precisely sectioned and professionally painted in various colors to distinctly highlight different components, cross-sections, and lubrication circuits. Many parts are coated with chrome plating and galvanized for enhanced durability, ensuring the model’s longevity and resistance to wear.

SKU: ASE0010 Categories: ,

Description

This cutaway model is meticulously crafted to offer a highly detailed view of complex machinery, with an emphasis on training and educational purposes. It prominently showcases a movable blade assembly and the functionality of the variable geometry system, allowing clear insight into its operation. Every section is professionally painted in contrasting colors, which serves to differentiate the distinct components, cross-sections, and lubrication circuits, enhancing comprehension of the system’s structure and mechanics.
The model also includes an array of parts that have been chrome-plated and galvanized to increase their durability and resist wear over time. This coating not only improves the model’s longevity but also provides a polished finish that highlights its intricate details. Through its comprehensive layout, the cutaway model becomes an invaluable tool for hands-on learning, offering trainees a precise, color-coded view of the inner workings and flow pathways within the system.
