Description

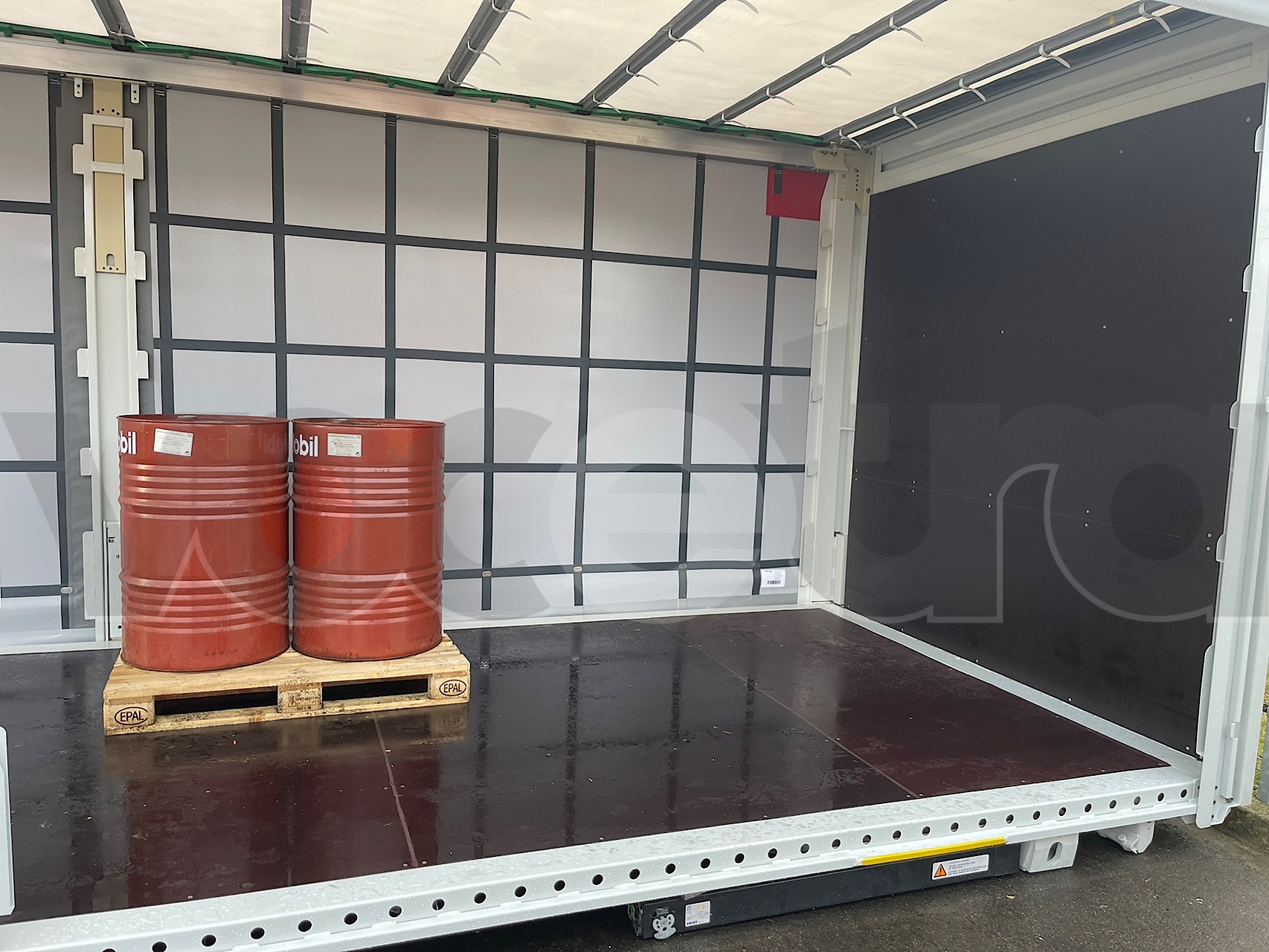

The structure is engineered to handle heavy loads and meet stringent industry requirements. It includes a 230 mm thick floor assembly with floor plates, rectangular longitudinal beams, and cross members, all welded together to add stability and resistance to dynamic stresses. The floor is made of 27 mm thick waterproof plywood, tested for strength according to DIN EN 283 standards, and can withstand a forklift axle load of up to 5,460 kg. This ensures that cargo remains safe and stable under various conditions.
Key Features for Cargo Security and Transportation Efficiency:
- Container Corner Fittings: The box includes four container corner fittings designed for symmetrical overhang, offering greater flexibility when securing it on different vehicles.

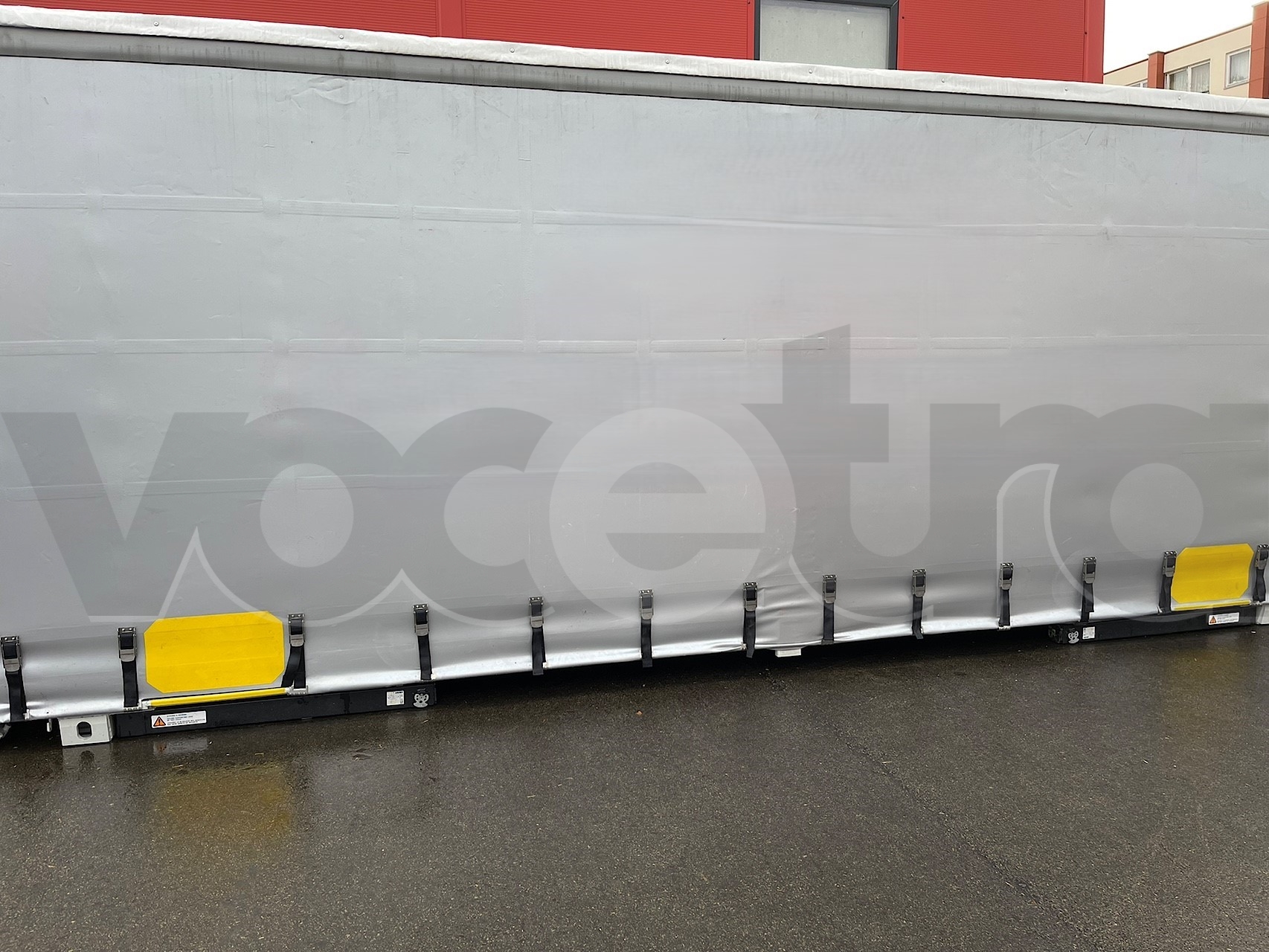

- Side Curtains and Roof: Equipped with high-quality PVC curtains reinforced with continuous straps, the curtains slide easily on top rollers and have tensioners at the bottom for secure fastening. The sliding roof with plastic joints provides additional functionality, allowing for easy access from above.
- Cargo Securing System: The side rail with load securing positions every 100 mm makes it easy to fasten various sizes of cargo securely.
- Rear Design and Safety Standards: The rear is designed with steel container doors that are easily replaceable or repairable. Door locks and latches are positioned on the outside, and door catches are secured with chains. This setup meets EN 12642 Code XL load safety standards, providing assurance that cargo remains stable and secure, even in challenging conditions.
- Durable Steel Components: All steel parts are shot-blasted, KTL primer-coated, and powder-coated to ensure long-term protection against corrosion, ensuring the box remains durable and visually appealing over time.
With its strength, flexibility, and compliance with safety standards, this curtain box offers an efficient and reliable transport solution. It optimizes space usage and maximizes cargo securing options, making it highly valued in logistics.
Specifications:
- Gross Weight: 16,000 kg
- Tare Weight: 2,580 kg
- Internal Length: 7,280 mm
- Internal Width: 2,480 mm
- Total Length: 7,450 mm
- Floor Height (including floor): 230 mm
- Side Access Height: 2,390 mm
- Corner Height: 2,750 mm
- Front/Rear Overhang: 798.5 mm
- Landing Height: 1,320 mm
- Floor Thickness: 27 mm (waterproof plywood)
- Curtain Quality: PVC, 850 gr./m²
- Standards Compliance: EN 12641-2, EN 12642 Code XL
This curtain box solution offers durability, safety, and efficiency, making it ideal for a wide range of transportation and logistics applications.
