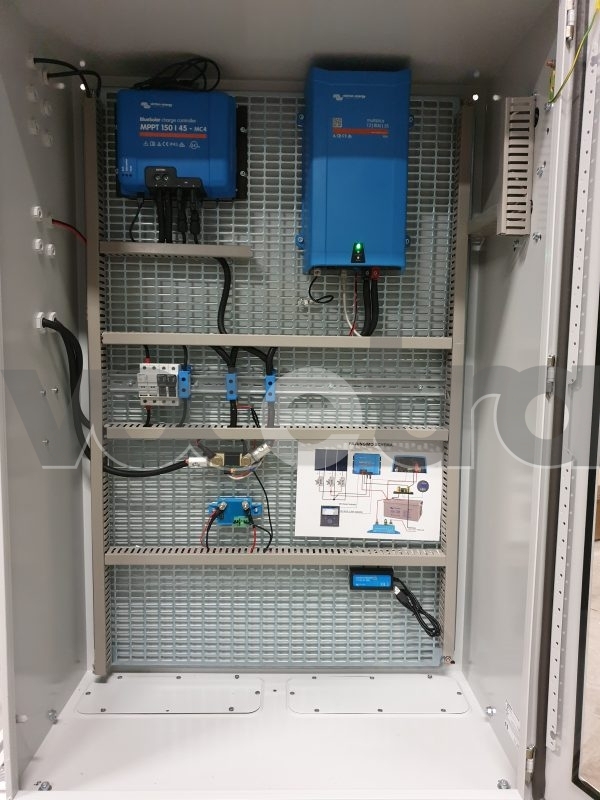

Description
Technical characteristics:
✓profile tensile strength 240 N/mm2
✓profile elasticity modulus 70000 N/mm2
✓profile hardness according to the Brinell scale 75 HB
Baterry – 1 pc.
✓deep discharge cycle
✓voltage 12 V
✓capacity 220 Ah
✓with 3 plexiglass protection
Transparent panel – 1 pc.
✓ door opening angle 120 degrees
✓ three points attachment
✓ with integrated perforated mounting net
Demo screen – 1 pc.
✓ voltage limits from 8 to 70 V continuous
✓ currents
✓ connected to an inverter
✓ ethernet connection
✓ ModBus connector
✓ we demonstrate battery parameters, alternating current parameters, alternating current loads, solar panel power
✓ all values are displayed on the digital screen
✓ automatic data transfer to the database
Controller – 1 pc.
✓ battery voltage: 12/24/36/48 V
✓ automatic voltage selection
✓ maximum power point tracking control
✓ charging current 45A
✓ nominal PV power at 12 V – 650 W
✓ nominal PV power at 24 V – 1300 W
✓ nominal PV power at 48 V – 2600 W
✓ PV short circuit current – 50A
✓ multi-level stacking algorithm
✓ battery polarity reversal protection
✓ Polarity reversal protection of PV components
✓ short circuit protection
✓ over temperature protection
Inverter – 1 pc.
✓ power management function
✓ power management auxiliary function
✓ switch 16A
✓ output voltage 230 V
✓ power at 25 C – 700 W
✓ power at 40 C – 650 W
✓ power at 65 C – 400 W
✓ short peak power 1.6 kW
✓ efficiency 92 %
✓ integrated programmable relay
✓ integrated battery temperature sensor
